Main Features: Power supply: 65-180Vdc Stall Torque: 4,6 – 8,7 – 12 Nm Interface: CANopen DS402, Profibus-DP, Modbud RS485, Pulse/direction, ±10V I/O: 5 Digital Input – 4 Digital Output – 1 Analog Input Encoder Output: incremental, line driver Feedback: Incremental/Absolute Encoder Stand-alone programmability according to the standard IEC61131 Richiedi informazioni
Main Features: Stall Torque: 4,6 – 21 Nm Feedback: Incremental/Absolute Encoder Connection: Swiveling 90° angled connectors Protection: IP65 Richiedi informazioni
Main Features: Power supply: 65-180Vdc Peak Current: 12 A Interface: CANopen DS402, Profibus-DP, Modbud RS485, Pulse/direction, ±10V I/O: 7 Digital Input – 4 Digital Output – 1 Analog Input Encoder Output: incremental, line driver Feedback: Incremental/Absolute Encoder Stand-alone programmability according to the standard IEC61131 Richiedi informazioni
Main Features: Power Supply: 560Vdc Stall Torque: 2,8 – 4 – 5,6 – 6 – 8 – 16 Nm Feedback: Resolver, Incremental/Absolute Encoder I/O: 4 Digital Input – 3 Digital Output – 1 Analog Input Interface: CANopen DS402, EtherCAT, Profibus-DP, Pulse/direction, ±10V Stand-alone programmability according to the standard IEC61131 Integrated movement features: device profile DS402, …
Main Features: Stall Torque: 0,2 – 115 Nm Feedback: Resolver, Incremental/Absolute Encoder Connection: Swiveling 90° angled connectors Protection: IP65 Richiedi informazioni
Main Features: Power Supply: 3x400V three-phase Peak Current : 7,2 – 14 – 30 – 45 – 70 – 90 A Communication Protocols: CANopen DS402, Pulse/direction, ±10V Integrated EMC Filter I/O: 6 Digital Input – 4 Digital Output – 2 Analog Input Encoder Output: incremental, line driver, programmable resolution from 64 to 16384 p/r Feedback: …
Main Features: Power Supply: 1x230V three-phase / 3x400V three-phase Peak Current 1x230V: 11 – 17 A Peak Current 3x400V: 8 – 20 – 45 -100 A Communication Protocols: CANopen DS402, Pulse/direction, ±10V Integrated EMC Filter I/O: 6 Digital Input – 4 Digital Output – 2 Analog Input Encoder Output: incremental Feedback: Resolver, Incremental/Hiperface Encoder Richiedi …
Azionamenti – Inverter LG Drive LBD x Motor BRUSHLESS Leggi altro »

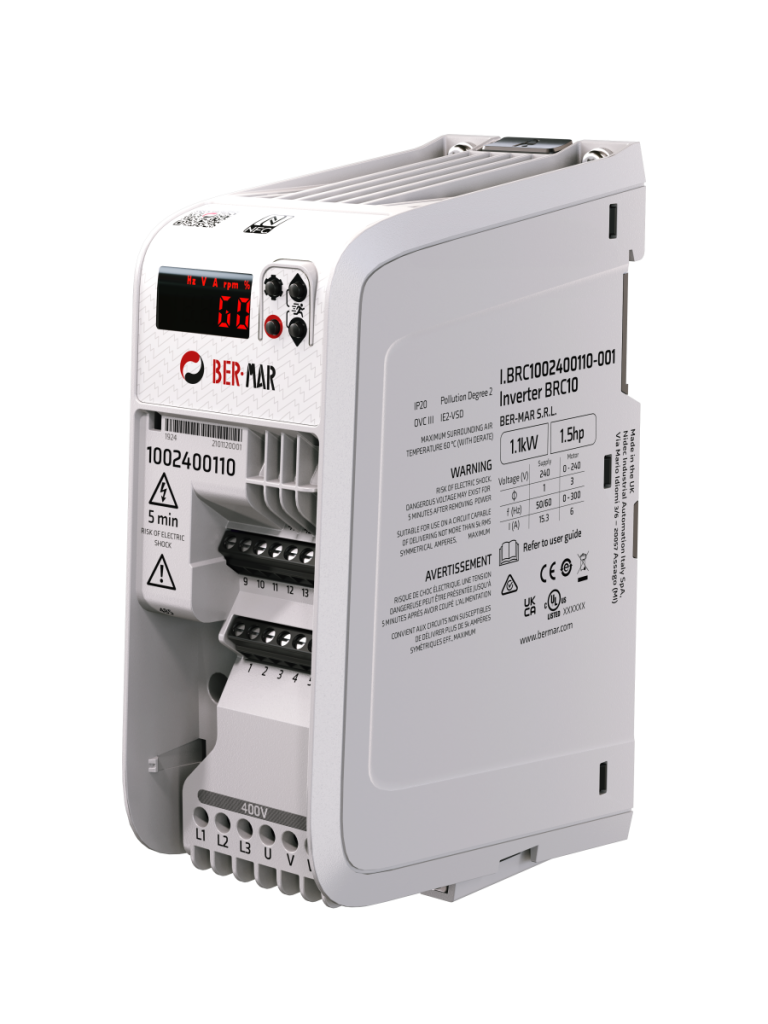

Main Features: Power Supply: 1x230V single-phase / 3x230V three-phase / 3x400V three-phase Capacity: 0,4 ÷ 22 KW Control Method: V/F – Sensorless Vector PID Control Integrated Keyboard for reading and setting parameters Communication Protocols: ModBus/RTU** – Profibus-DP** – CanOPEN** ** Optional Richiedi informazioni
Inverter for vector control pumps and fans Main Features: Power Supply: 3x400V three-phase Capacity: 5,5 ÷ 450 KW Control Method: V/F – Sensorless Vector – Sensored Vector** PID Control Sleep & Wake-up Function PLC Card** – I/O Extension Card** Communication Protocols: ModBus/RTU – Profibus-DP** – DeviceNet** Integrated EMC Filter for sizes 0 ÷ 30 KW …
High power with precise and flexible control Main Features: Power Supply: 3x400V three-phase Capacity: 0,75 ÷ 160 KW Control Method: V/F – Sensorless Vector – Sensored Vector** PID Control Integrated braking module for sizes 0 ÷ 22 KW PLC Card** – I/O Extension Card** Communication Protocols: ModBus – Profibus-DP** – CanOPEN** Integrated EMC Filter for …
